Description

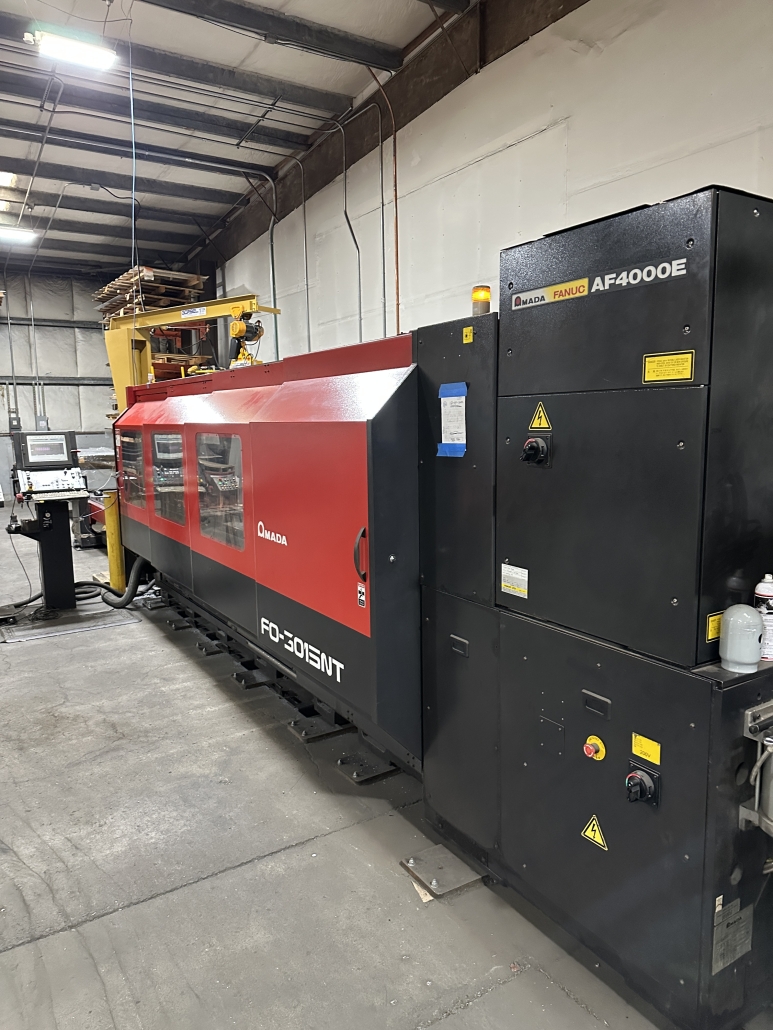

Amada Laser Model FO-3015NT
Year: 2005
DESCRIPTION:

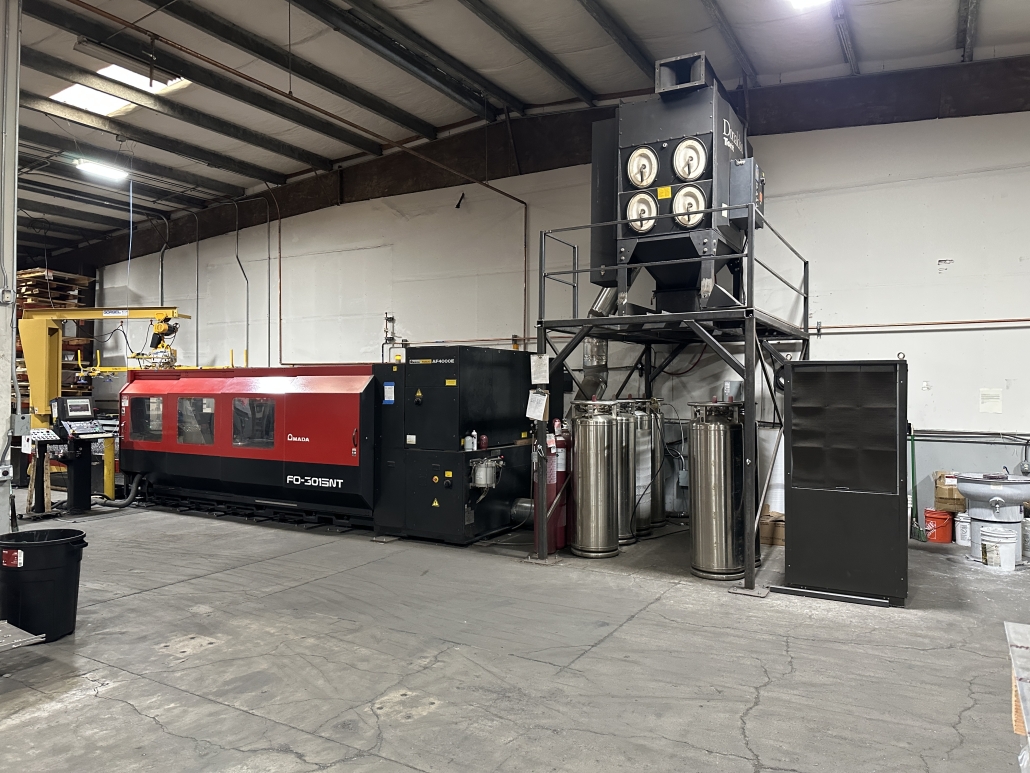

• Amada FO-3015NT, 4KW CO2, 60” x 12” Max Sheet, Dust Collector, 2005
• Machine has been under Amada AMP Service Contract and is in good condition.
SPECIFICATIONS:
• Max. Sheet Size: 120” x 61”
• Wattage: 4,000 Watts
• X-Axis Carriage Travel: 122.8”
• Y-Axis Laser Head Travel: 61”
• Z-Axis Laser Head Travel: 7.87”
• Cutting Feed Rate: 0 – 780 IPM
• Max. Positioning Speed(X&Y) 3,150 IPM
• Max. Positioning Speed (Z Axis) 2,362 IPM
• Assist Gas: 4 Ports with NC Pressure Control
• Max. Material Weight: 1,850 Lbs
• Approx. Weight: 26,000 Lbs
EQUIPPED WITH:
• Fanuc AMNC-F 160iLB CNC Control
• Fanuc AF4000C Resonator

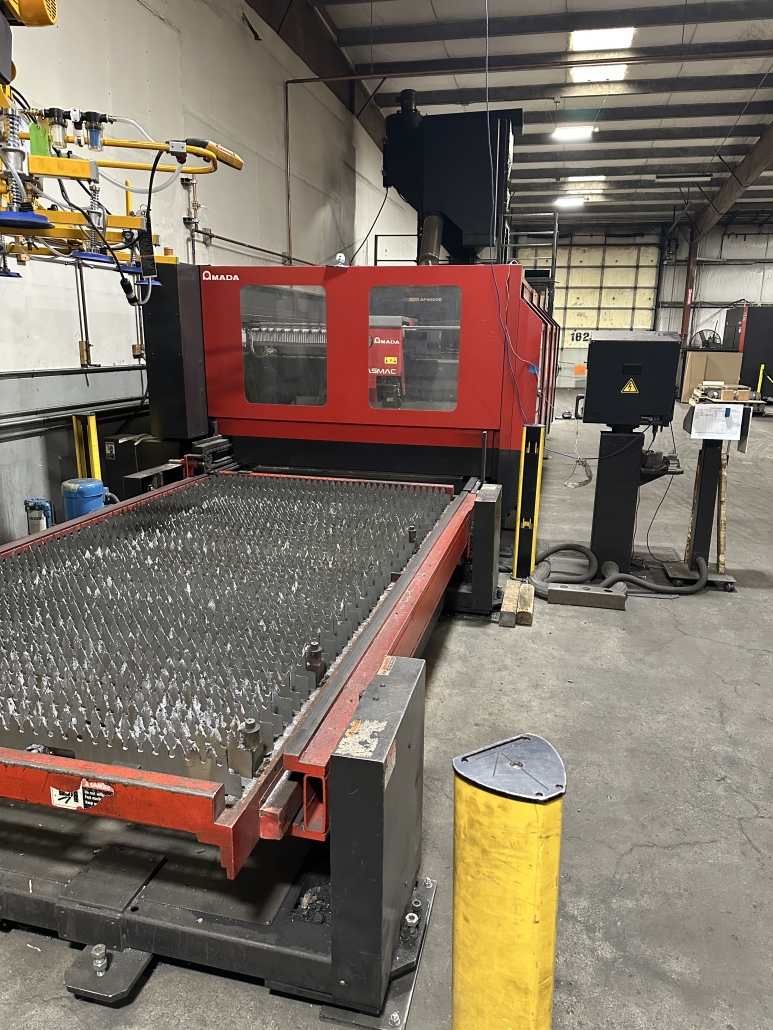

• Dual Pallet Shuttle Tables
• Fanuc AC Servo Motors
• Dust Collector
• Chiller

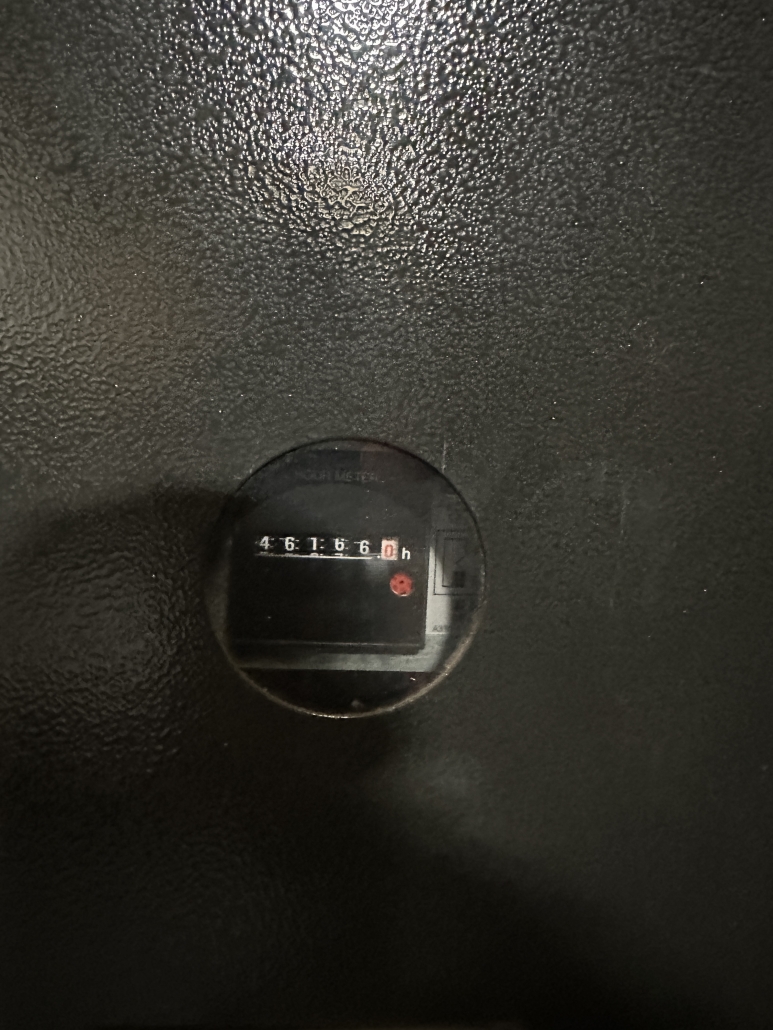

APPROXIMATE HOURS:
- 46,166
MAXIMUM MATERIAL THICKNESSES:
• Carbon Steel: 0.75”
• Stainless Steel: 0.375” CleanCut
• Aluminum: 0.375”
NOTE: Machine has been under the AMP Amada Service Contract since 2018.
TERMS: NET PRIOR TO SHIP
FOB: OREGON
