Description

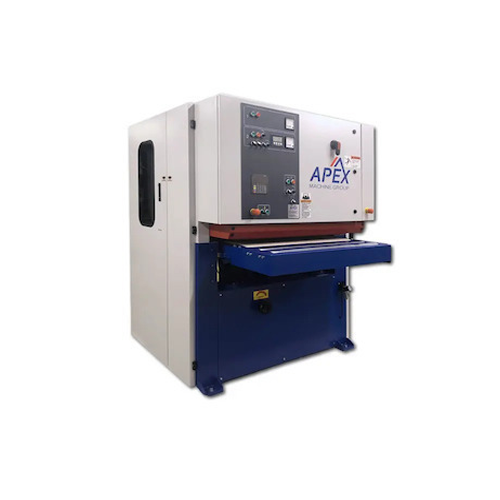

APEX 1037M-DS Series Metal Finishing Machine
DMT offers sales in Washington, Oregon, Idaho, California, Northern Nevada, Montana, British Columbia, and Alberta, on Apex 1037 M-DS Series Metal Finishing Machine
Document AMG-Brochure_x3-DIGITAL
Overview
Type: Thru Feed Grinders
Manufacturer: APEX
Model: 1037M-DS
Condition: New – Build-To-Order
Status: For Sale
Description
Deburring, Grinding, Edge Radiusing
The 1000-series of machines are built in a heavy duty construction with a smaller footprint designed to accommodate a job shop with various applications such as deburring, dross removal, calibrating/dimensioning, edge radiusing or finishing. This series of machine can be built in both top and bottom configurations.
MACHINE FEATURES
Machines built in widths from 13″ to 43″ and multiple head frames
Dual infeed and outfeed pinch rolls to ensure parts feed through machine properly
One- to three-head configurations with drum, brush, disc or combination drum/brush/disc heads
Machines built in both top and bottom configurations
Individual cam adjustment down to .001″ per head for accurate finishing
Air-loaded cylinder for automated belt tensioning
Automatic abrasive belt tracking to ensure proper belt alignment during operation
Specifications
SPECIFICATION DESCRIPTION
Belt Width 13″ to 43″
Motor Size 5 HP to 30 HP
Number of Heads 1 to 3
Types of Heads Drum, Scotch-Brite, Brush and
Available Disk
Drum Size 100 mm to 200 mm
Machine Top-Only, Bottom-Only, or
Configuration Top/Bottom Configuration
Feed Motor 1 HP to 3 HP
