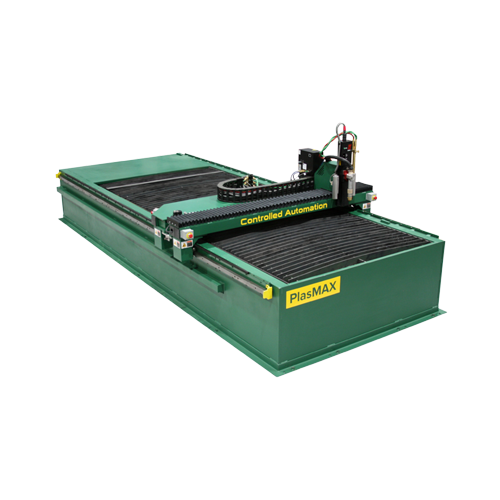

CONTROLLED AUTOMATION PLASMAX
DMT offers sales in Washington, Oregon, Idaho, Northern California, Northern Nevada and Montana on Controlled Automation Plasma Cutter
Description
High Speed plasma cutting for the most critical tolerance parts
The unitized PlasMAX cutting system differs from any other plate cutting machine produced by Controlled Automation with its unique all aluminum gantry design for the highest speed accelerations between parts. This allows the PlasMAX combined with its high precision drive system to not only cut faster than any other system, but produce the most critically accurate plasma cut parts possible. The PlasMAX sits as the high speed and high precision cutting choice for material up to 4″ (102mm) thick and with maximum material sizes up to 8′ (2.5m) wide to 30′ (9.2m) long.
Specifications
Cut-Width 6′
Cut-Length 22′
Plasma Power 260 a
# Plasma Torches 1
Rapid Traverse Speed 1400 ipm
Dimensions 26′ x 9′ x 60″
Weight 12000
Effective Cutting Length 4′ to 30′ / 1.2m to 9.2m
Effective Cutting Width 6′ to 8′ / 1.8m to 2.5m

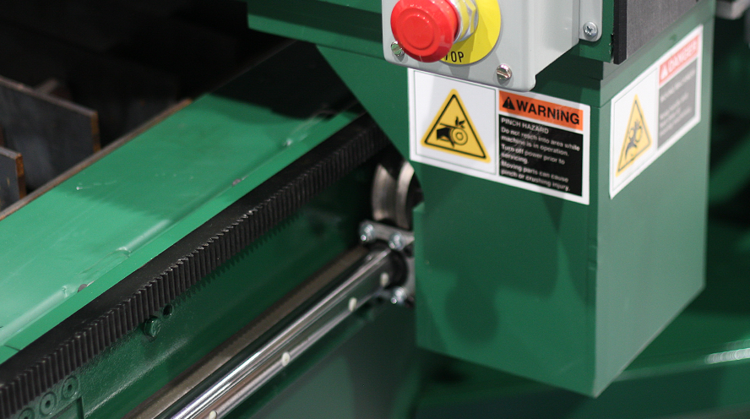

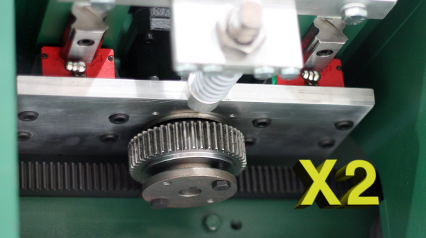

Drive Configuration Rack and Pinion, with AC digital servo amplifiers
Machine Speeds Rapid Traverse 1,400 IPM / 36 mpm
Positioning Accuracy ±.007in.
Body Construction Unitized
Dual Side Drive All Models
OPTIONAL CUTTING STATIONS
Number of Torches Gas Control
1 Oxy-Torch Manual or Automatic gas control
1 Plasma station Manual or Automatic gas control
Contour Bevel Capable
Larger Machines Available
