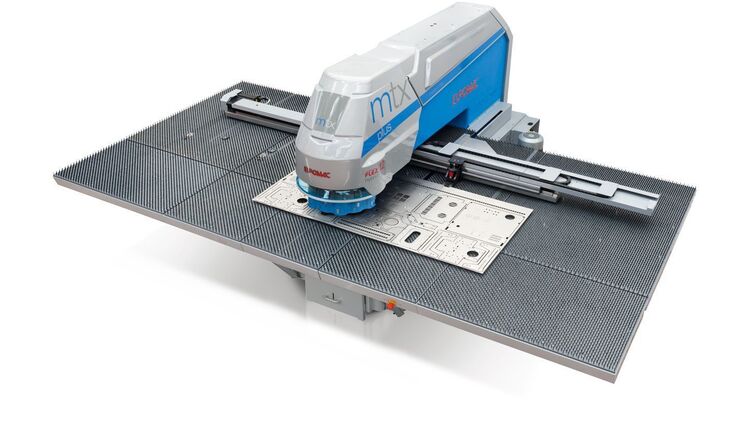

EUROMAC MTX Plus Flex
DMT offers sales in Washington, Oregon, Idaho, Northern California, Northern Nevada and Montana on Euromac MTX Plus Fles
The new frame with an increase of dimensions enables the machine to operate with higher speeds thus ensuring greater stability and working precision.
TECHNICAL DATA
MTX Flex
1250/30-1300 1250/30-2250 1250/30-2500
Max. punching force (kN) 300Y axis with Multitool /Monopunch (mm)
Y = 1250 1300 / 1250
Y = 1500
X axis (mm) 1300 / 2250 / 2500
Automatic repositioning in X (mm) fino a 10000
Numerically control stroke depht (mm) da 0.1 a 31
Hydraulic servomotor controlled system standard
Position accuracy (mm) +/- 0.05
Precision in forming repeatability (mm) +/- 0.1
Bidirectional Autoindex stations 3
Opening of clamps (mm) 11
Automatic positioning clamps 2
Max. hit rate (1/min):
Punching with 20 mm pitch 375
Nibbling with 1 mm pitch 1000
Marking 2000
Thickness range (mm) 0.6 – 6
Max. weight at reduced axis speed (kg) 150*
USB port 6
Installed power (kW) 8.5
Average consumption (kW/h) 4.5
Approx. weight (kg)
X = 1300 6500
X = 2250 7000
X = 2500 7800
Overall dimensions (mm)
X = 1300 2240 x 3630
X = 2250 3980 x 3630
X = 2500 4840 x 3630
* for sheets of over 50 kg weight combined brush and balls tables are required
