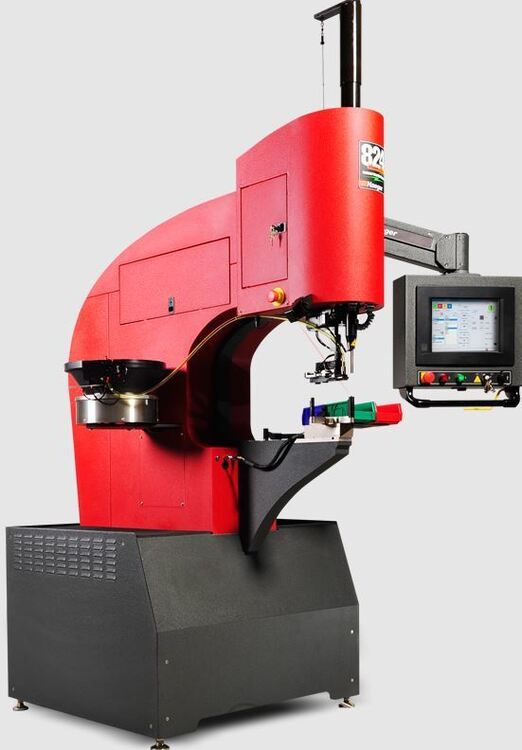

HAEGER 824 WindowTouch-5e
DMT offers sales in Washington, Oregon, Idaho & British Columbia
on Haeger Model 824 Window Touch 5e
Overview
Type: Insertion Machines
Manufacturer: HAEGER
Model: 824 WindowTouch-5e
Condition: New – Build-To-Order
Status: For Sale
Description
From our standard product offering insertion machines, to our build-to-order products and custom engineered insertion solutions, Haeger has the ability to provide you with a totally unified solution for virtually any of your insertion challenges. Whether your shop is new to hardware insertion, or inserts millions of fasteners each year, Haeger’s solution oriented approach will ensure that you get the correct system for your needs.
The 824TM WindowTouch® 5e brings you:

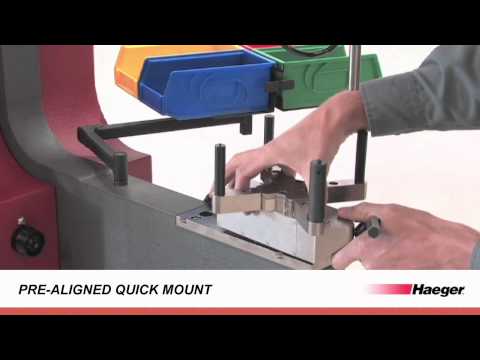

1. Easier and faster tooling setup combined with the most reliable fastener feeding
2. Best workpiece accessibility
3. Easier and faster programming
4. Best Operator Ergonomics
5. Energy Saving
Specifications
Force Range Adjustable 800 lbs. (3.6 kN) to 16,000 lbs. (72 kN)
Throat Depth 24” (610 mm)
Stroke Length Adjustable 0 to 8.5” (0 to 220 mm)
Electrical 208 to 575 V 3 phase – 50 or 60 Hz
Motor 5 HP 3 Phase Low 16 A 208-240 V / High 9.6 A 380-480 V
Oil Tank Reservoir 22 gallons (83 liters)
Speed up to 1,400 insertions per hour
Repeatability +/- 2% of force setting
Weight 3,000 lbs. (1,361 kg)
Footprint 59”L x 40”W x 94”H (1499 mm x 1016 mm x 2388 mm)
Fastener Range .256 to 1/2” (M2 to M12)
