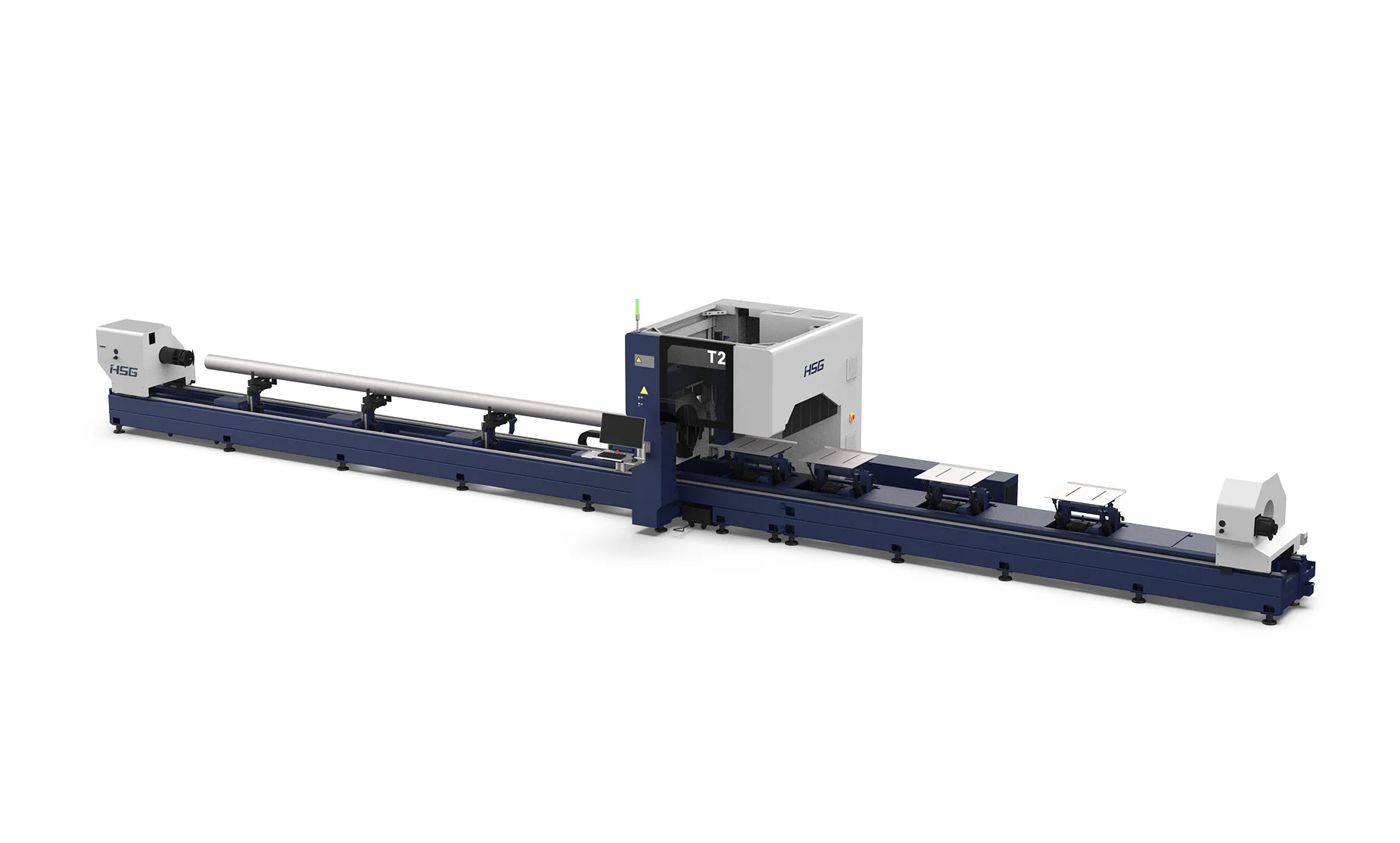

HSG Chuck Tube Laser Cutting Machine, T series
OFFERED IN WA, OR, ID, N. CALIFORNIA
https://us.hsglaser.com/t-series
ADVANCED EFFICIENCY AND COST SAVINGSReliable 3-Chuck Cutting for Mid-Size Tubes
The T-Series supports tubes with a radius of 0.79-9.45 inches (T2) or up to 13.78 inches (T3), offering a significantly expanded processing range. Its advanced three-chuck design ensures greater load-bearing capacity, enables short-tail cutting, and facilitates seamless automatic cutting of finished products. This state-of-the-art solution meets diverse processing needs while maximizing cost efficiency for customers.
Full-Length Tube Loading and Unloading
The hollow chuck design allows tubes to pass through effortlessly, enabling the loading and unloading of entire tubes. This design increases the maximum tube length capacity, with automatic blanking lengths reaching up to 19.7 feet.
Zero Tail Cutting
The chuck’s forward and backward movement automatically adjusts the tube’s position, achieving zero tailings during cutting. This maximizes tube utilization and reduces material costs.
Independent Follow-Up Support on the Loading Lathe
The 7-meter-long loading lathe bed is equipped with four highly sensitive, independent servo follow-up support components. These components provide robust support during tube rotation cutting, ensuring precision and stability.

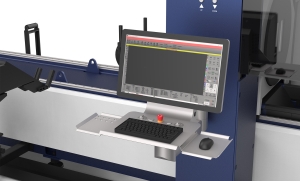

HSG-X10000 Bus Cutting System
Featuring the HSG-X10000 bus cutting system, this solution offers a wide range of auxiliary functions tailored for pipe cutting applications, covering the most commonly used operations. Its user-friendly interface ensures easy operation, meeting diverse cutting needs while enhancing production efficiency and processing quality.
TECHNICAL SPECIFICATIONS
Model
|
T2
|
T3 |
Power
|
3-6kW
|
3-6kW
|
Tube Range in diameter
|
Φ0.79-Φ9.45 inches
|
Φ0.79-Φ13.78 inches
|
Cutting Capacity of Square Tube
|
□0.79×0.79 – □9.45×9.45 inches
|
□0.79×0.79 – □13.78×13.78 inches
|
Weight of Single Tube
|
660 lbs
|
1,320 lbs
|
Chuck Speed
|
100 rpm
|
80 rpm
|
Max Linkage Speed
|
328 ft/min
|
262 ft/min
|
Maximum Acceleration
|
1.0G
|
1.0G
|
