HSG DRILLING, CUTTING, TAPPING LASER CUTTING MACHINE, MODEL TPSD
OFFERED IN WA, OR, ID, N, CALIFORNIA
https://us.hsglaser.com/tpsd-series

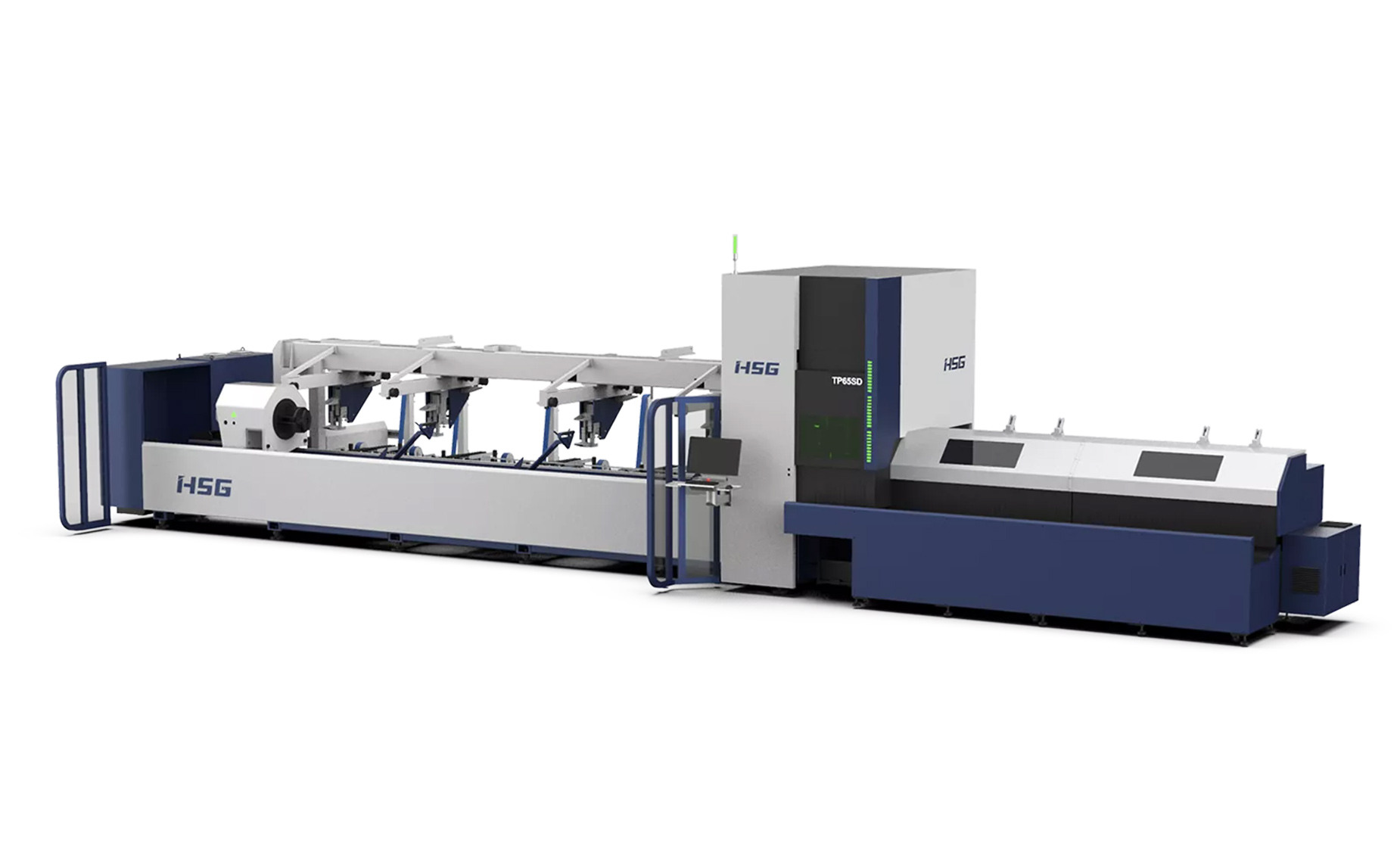

Your New Benchmark In Fiber Laser Cutting Productivity
The All-in-One Tube Processing Solution
Introducing the TPSD, which combines cutting, tapping, and drilling in a compact, efficient machine. Designed for industries such as fitness equipment, furniture, and job shop manufacturing, it accommodates tube sizes ranging from 0.47 to 10 inches in diameter.

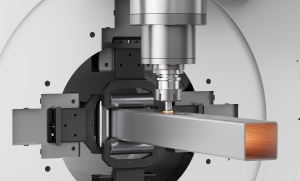

HSG Multi-Aperture Thermal Drilling-Tapping Technology
The HSG TPSD seamlessly combines cutting and drilling processes, significantly accelerating production cycles. With laser-powered thermal drilling, it ensures unmatched precision and superior product quality. By integrating functions, it reduces the need for multiple machines, cutting costs and optimizing efficiency. User-friendly features streamline workflows, while non-contact laser technology protects material integrity, delivering flawless results. Transform your manufacturing with the TPSD.
Intelligent Self-centering
Precise and Durability
Safe and Reliable

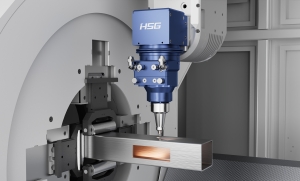

HSG SPEED+ Rapid Cutting Technology
Revolutionize tube processing with unparalleled speed and precision. HSG SPEED+ enhances efficiency for dense and intricate patterns, delivering exceptional performance in high-speed cutting. This advanced technology ensures optimal throughput and accuracy, meeting the demands of even the most complex applications.

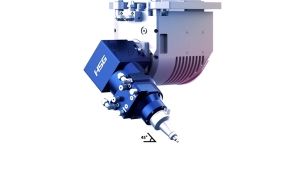

HSG LA4 Five-axis Tube Beveling Head
Experience the high-performance bevel cutting head designed for high-power laser tube cutting machines. Essential for heavy-duty tube cutting applications.
• Optimized laser resonator:utilizes HSG Japan’s exclusive optical module design to maximize laser efficiency.
• Superior thick plate cutting:unique optical path arrangement significantly reduces material quality requirements, ensuring high-quality cuts.
• Precision focus control: fully automatic servo motor focus control for precise and consistent cutting performance.
• Anti-collision oscillating design:enhanced processing efficiency and collision avoidance for uninterrupted operation.
• Modular design:simplifies maintenance, reducing downtime and costs.
• Versatile bevel cutting:flexible cutting within a ±45° bevel range, perfect for complex geometries.
Comprehensive Tube Machine Application Assistance
Benefit from a professional tube cutting process database built on years of expertise. The TPSD Series, equipped with tailor-made TTN (Japan) nesting software, delivers intelligent nesting capabilities that streamline cost estimation and optimize production schedule management, ensuring seamless and efficient operations.
TPSD Technical Specifications
Model
|
TP65SD
|
Power
|
3-6kW
|
Max.Traveling Speed
|
459 ft/min
|
Chuck Rotation Speed
|
120 rpm
|
Positional Accuracy of Machine Tool
|
±0.0012 in/ft
|
Repeatability of Machine Tool Positioning
|
±0.0012 in
|
Max. Acceleration
|
1.2G
|
Weight of Single Tube
|
440 lbs
|
Max.Diameter Round Tube
|
0.47-10.75 in
|
Max. Tube Length
|
21.3 ft
|
Dimensions with Semi-auto(L*W*H)
|
41 ft × 15.4 ft × 8.5 ft
|
