Description

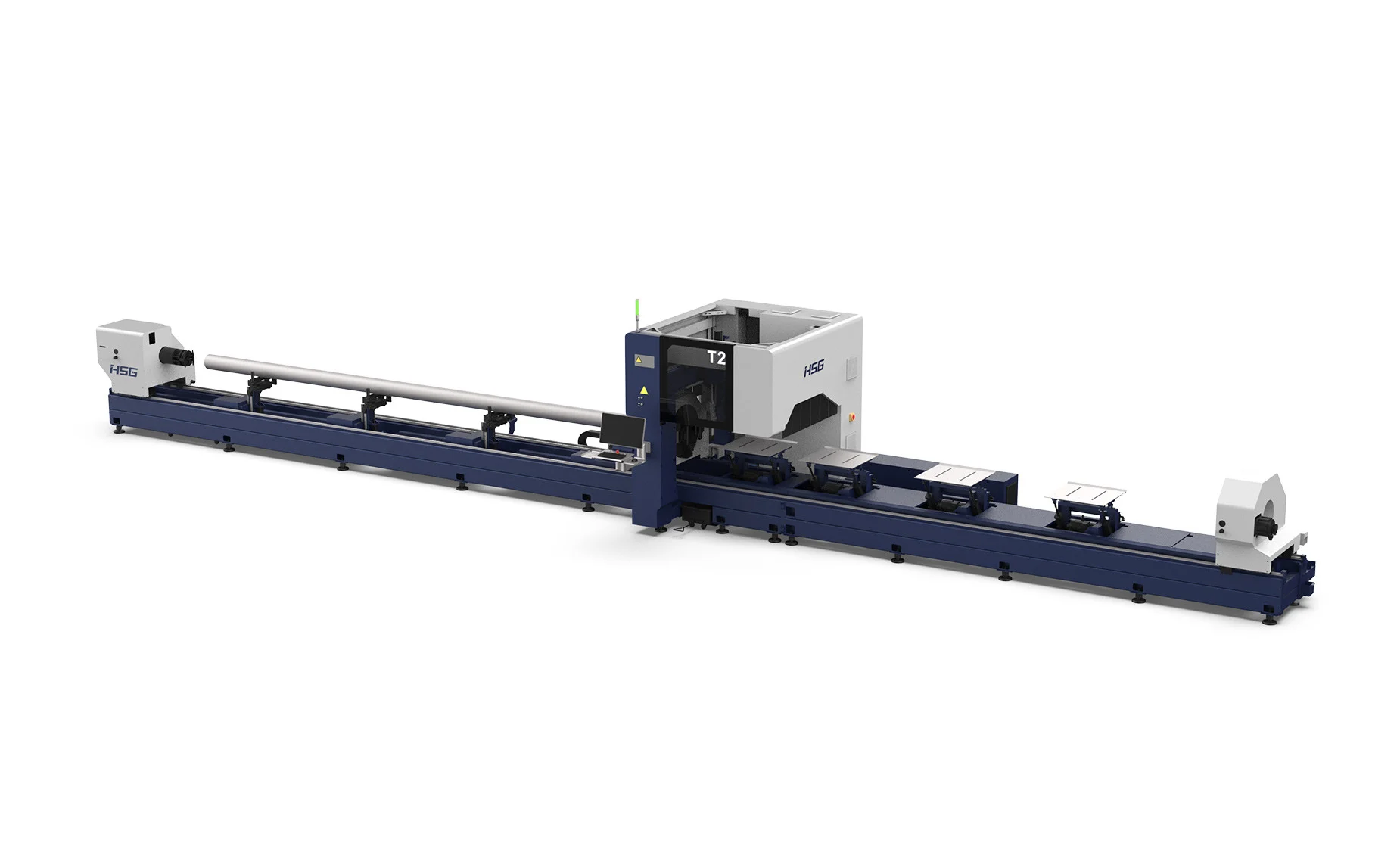

HSG TUBE LASER MODEL TL
OFFERED IN WA, OR, ID, N. CALIFORNIA
https://us.hsglaser.com/tls-series
Built for Ultra-Large Tube
Experience the TLS Series—an industry benchmark in quality, productivity, and performance. Engineered to handle ultra-large tube cutting applications, it offers up to 20kW of laser power, accommodates tube lengths up to 53.5 feet, weights up to 8,818 pounds, and diameters up to 28.15 inches. The TLS Series is the ultimate solution for industries requiring precision and efficiency, including steel fabrication, petroleum, and shipbuilding sectors.
±45° Bevel Cutting for Complex Tasks
Experience unmatched precision and versatility with the HSG LA4 high-performance 5-axis bevel laser cutting head, expertly designed for high-power laser tube cutting machines, enables flexible cutting within a ±45° bevel range, making it ideal for tackling complex geometries with ease while streamlining subsequent processes.

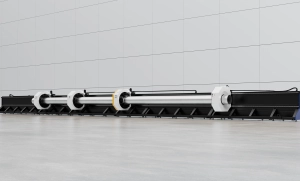

Handle Single Tubes Up to 53 Feet & 8,818 lbs
Equipped with HSG’s signature 4+1 chuck design, the TLS Series ensures exceptional precision and a flawless, vibration-free cutting experience. Capable of handling tubes weighing up to 8,818 pounds and lengths of up to 53 feet, it enables you to process even the heaviest tubes with ease, pushing the boundaries of your operational capabilities without compromise.
Power Up to 20kW for Thick Tube Processing
To tackle the challenges of thick tube cutting, the TLS Series can be equipped with a high-power laser cutting head of up to 20kW. This advanced cutting head features an optimized resonator for maximum efficiency, a unique optical path for superior cutting quality, and automated focus control for precise and consistent performance, setting a new standard in high-power laser cutting for demanding applications.

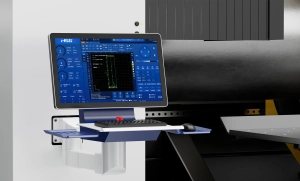

Expert Applications, Intuitive Software
Engineered to set new benchmarks in pipe cutting technology, the HSG Intelligent Bus Operating System X9800 redefines ultra-large tube cutting. With its built-in material library, it eliminates programming, streamlining workflows for maximum efficiency. Supporting up to 50 tube joint types, it offers unparalleled versatility. The advanced bus CNC system and specialized software ensure precise control and intuitive real-time visualization. A user-friendly interface, enhanced cutting assistance, and comprehensive maintenance plans guarantee seamless, reliable performance for even the most demanding applications.
TLS Technical Specifications
|
Model
|
TL730S
|
TL660 |
|
Power
|
12-20kW
|
6-20kW
|
|
Cutting Capacity of Round Tube
|
Φ4.72-Φ28.15 inches
|
Φ3.15-Φ25.98 inches
|
|
Cutting Capacity of Square Tube
|
□4.72×4.72 – □19.69×19.69 inches
|
□3.15×3.15 – □17.72×17.72 inches
|
|
Weight of Single Tube
|
8,818 lbs
|
6,614 lbs
|
|
Chuck Speed
|
35 rpm
|
30 rpm
|
|
Max Linkage Speed
|
148 ft/min
|
164 ft/min
|
|
Maximum Acceleration
|
0.2G
|
0.2G
|
