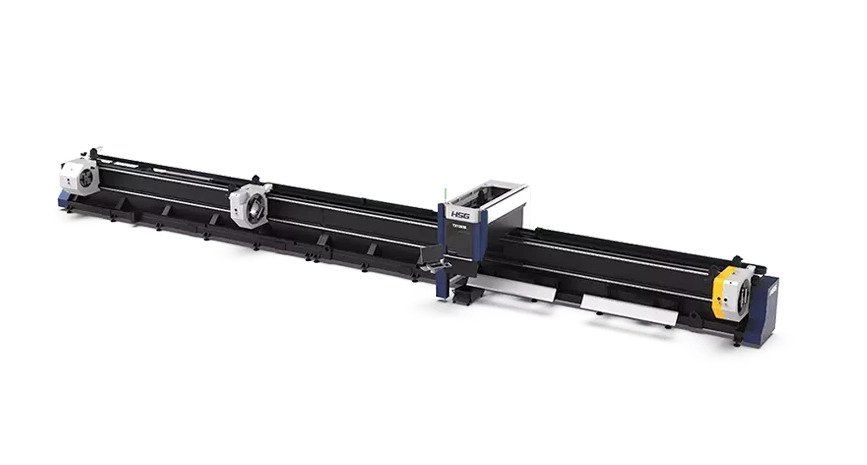

TX-Heavy Duty Tube Fiber Cutting Machine
https://us.hsglaser.com/tx-series
Designed for large-diameter tubes and profiles
Designed to process tubes up to 14.2 inches (TX3) / 19.7 inches (TX5) in diameter and weighing up to 2,645 pounds (TX3) / 3,307 pounds (TX5), the TX Series excels in applications requiring robust cutting capabilities, such as construction, aerospace, energy, and transportation. Its advanced automation features and cutting-edge technology ensure seamless integration into modern production lines.
Unmatched Capability, Versatile Profile
Engineered for versatility, TX Series supports cutting round, square, and complex profiles such as channel steel, angle iron, and I-beams, meeting diverse production demands with ease. It handles tubes weighing up to 3,300 lbs, accommodates round tube diameters ranging from 2 inches to 20 inches, and processes lengths up to 40 feet—all in a single, powerful solution built to streamline operations and enhance efficiency.
Static Cutting for Energy Efficiency
Static cutting eliminates the need for tube movement during processing, ensuring precise machining while significantly reducing energy consumption by minimizing chuck movement. This approach not only enhances efficiency but also lowers operational costs.
Zero Tailing for Material Savings
HSG’s advanced multi-chuck reversing technology eliminates tailing during heavy pipe cutting, optimizing material utilization, minimizing waste, and delivering significant cost savings.

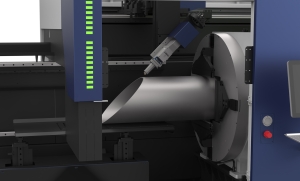

0-45° Bevel Cutting(Optional Features)
Offers flexible cutting within a ±45° bevel range, enabling precise joint preparation. This reduces the need for additional processing steps, saving both time and labor.
Heavy-Duty Tube Following Support System
This advanced system delivers comprehensive support during tube processing, ensuring enhanced precision and stability, particularly for heavy-duty tube applications.
HSG Unique Intelligent Chucks
3+1 Twin-Chuck Clamping (Optional Feature)
Streamline Your Workflow with Automatic Loading and Unloading
EFFICIENT AND INTUITIVELARGE TUBE CUTTING SOFTWARE
TX Technical Specifications
Model
|
TX3R
|
TX5R
|
Power
|
6-20kW
|
6-20kW
|
Cutting Capacity of Round Tube
|
Φ0.79-Φ14.17 inches
|
Φ1.97-Φ19.69 inches
|
Cutting Capacity of Square Tube
|
□0.79×0.79 – □14.17×14.17 inches
|
□1.97×1.97 – □13.78×13.78 inche
|
Weight of Single Tube
|
2,646 lbs
|
3,307 lbs
|
Chuck Speed
|
60 rpm
|
40 rpm
|
Max Linkage Speed
|
262 ft/min
|
197 ft/min
|
Maximum Acceleration
|
0.8G
|
0.3G
|
