NEW PMI PANTHER AUTOMATIC BANDSAW, MODEL H-330A
DMT offers sales in Washington, Oregon, Idaho, Northern California, B.C., and Montana
on PMI Panther bandsaw, model H-330-A

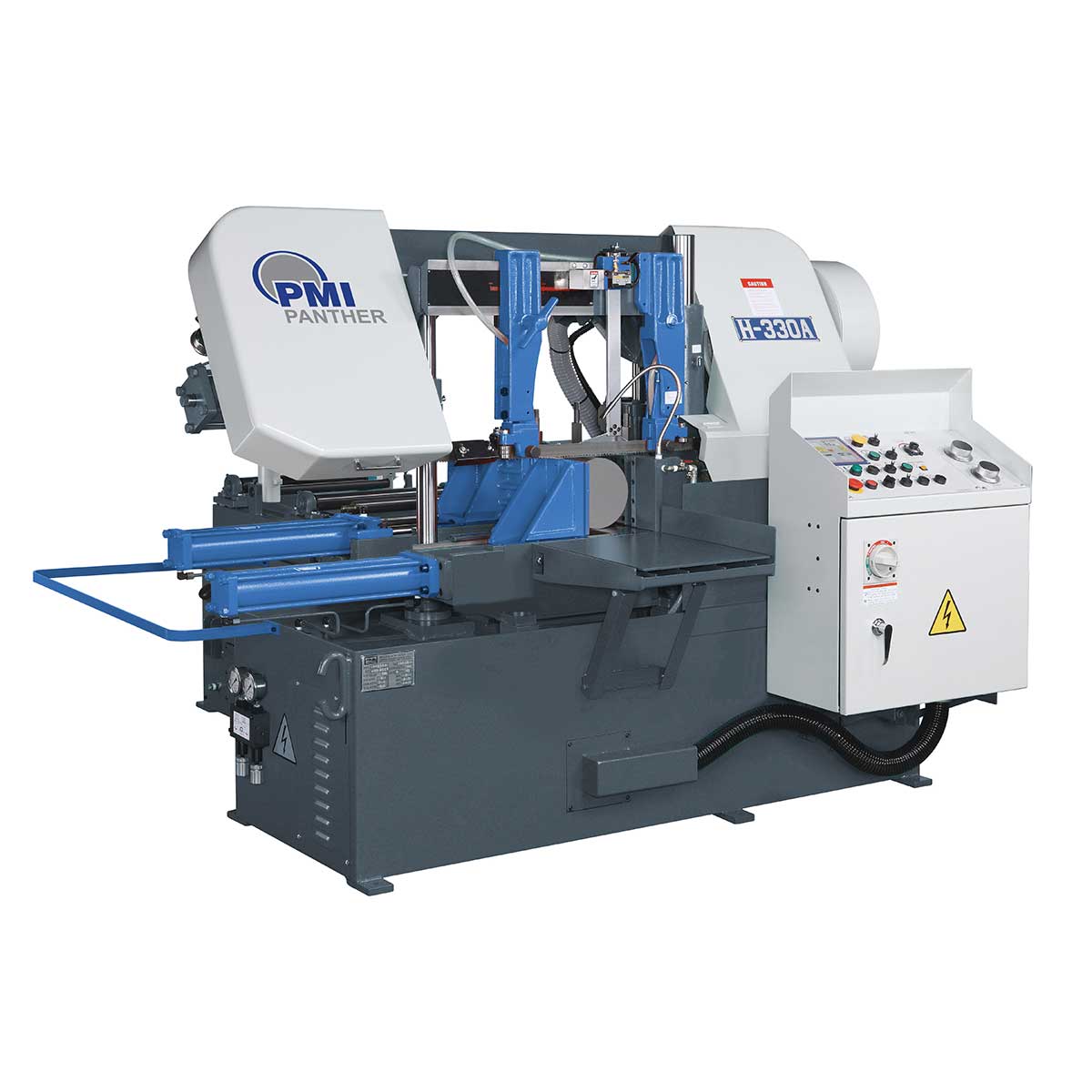

The PMI Panther H-330A fully automatic horizontal double column bandsaw with NC touchscreen
control offers high performance sawing capability where production, accuracy and ease of set up are
of importance. The saw is ideal for machine shops and metal service centers that cut a wide variety
of materials up to 13” in diameter.
Standard Equipment:
NC touchscreen control for setting length of cut and number of cuts on multiple jobs
Power driven chip brush
Hydraulic blade tension control
Multiple shuttle strokes
Idler wheel motion detector
Split front vise
Floating shuttle vise system
Hydraulic feed rate & feed pressure adjustment
Out of material alarm
Automatic chip conveyor
Variable speed drive with inverter
Unique 2 way carriage vise jaw
Work light and spray hose for machine cleaning
Auto head-elevation and rapid approach
Full stroke cylinder for front and rear vise
Auto kerf loss compensation
Specifications
Technical Data:
Material Shape Cutting Capacity Bundle
Round 13”
Square/Rectangle 13” W x 13” H 7” H x 10” W
Blade Size: 12’10” x 1-1/4” x .042”
Blade Speeds: Variable 65 to 260 FPM
Blade Motor: 5 HP
Dimensions: 89” W x 87” L x 67” H
Gross Weight: 4,070 lbs
Hydraulic Motor: 1 HP
Coolant Motor: 1/8 HP
