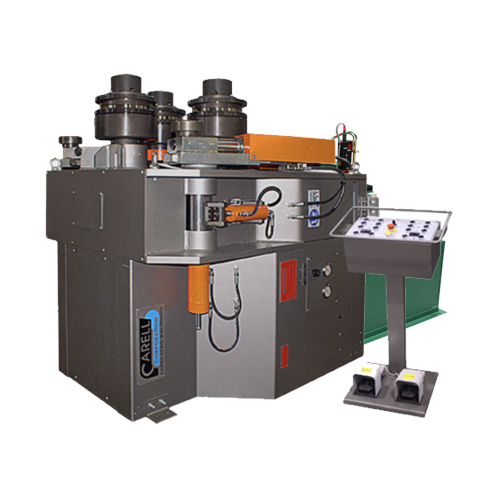

CARELL 307HV Double Pinch Angle Roll
DMT offers sales in United States and Canada on Carell Pinch Angle Rolls
Documents
Type: Angle Bending Rolls
Manufacturer: CARELL
Model: 307HV
Status: For Sale
Description
The CARELL 307HV
is a 3 driven rolls, double initial pinch universal bending machine with independent hydraulic adjustment of both lateral bending rolls and powered rotation of all three bending rolls. This versatile unit is ideal for rolling standard/special sections as well as tube and pipe in mild-structural-stainless steels, aluminum, brass, copper and other materials. Machines are furnished with a set of standard universal rolls.
Standard Features
Dual LED Digital Displays monitor bending roll positions.
Rugged, rigid, one piece solid steel weldment frame, normalized and precision machined, ample sized access panels and ventilation for internal hydraulic unit.
3 Shafts Driven w/ 3 Direct Coupled Hydraulic Motors and Planetary Speed Reducers for 100% efficient torque delivery.
Larger, high strength steel shafts, heat treated and ground, journaled in dual self aligning spherical roller bearings for optimum performance.
Hydraulic power unit integral to the machine frame.
Multi axis, 6 way, fully adjustable lateral guides.
Variable Speed rotation via electronic proportional valves.
Universal bending rolls with modular components, hardened and wear resistant.
Operates in both horizontal and vertical orientations.
*with standard equipment
Options
- Rolls for tubes pipes, and special profiles
- Tooling for production of half tubes
- Overhead Supports for coil production
- Compression and Tension tooling for C, & I hard way
- NC and CNC Controls with various automation levels for repetitive jobs and production of variable radius bends and parts with multiple bends
- Powered Movements on lateral material guides on models 302HV through 307HV
- LED digital displays for movements on lateral material guides
Specifications
Angle (L1) 4″
Angle (L2) 4″
Pipe Capacity 4″
(Init/Dbl Pinch or Pyramid) DBL PINCH
Hyd/Mech HYD
Operation (Horz, Vert, Horz/Vert) HORZ/VERT
Power 15 hp
Weight 8210 (LBS)
Capacities*
Flats Hard: 4″ x 1 Ø44
Flats Easy: 7″ x 1-3/8″ Ø32
Pipe Schedule 40: 4″ Ø45
Angle Leg-In: 4″ x 3/8″ Ø50
